Produktdetails:
Zahlung und Versand AGB:
|
| Produktbezeichnung: | Stromverteiler | Produktspezifikationen und -modelle: | 1S 63 XKN4D1-4e4g |
|---|---|---|---|
| ROHS: | - Ja, das ist es. | Sockeltyp und -anzahl: | 4-fach C13 (Schieber gegen Herausfallen), 4-fach C19 (Haken gegen Verrutschen) |
| Interne Anschlussleitung: | 10AWG, 14AWG, 16 AWG Elektronikdraht, Kupferband | Leistungsaufnahme-Modus: | Transparente Anschlussdose öffnen |
| Kabel-Spezifikationen: | Kunden schließen selbst 3 * 1 6mm² Kabel an | Kabelinstallationsmethode: | Höherer Eingang |
Power Distribution Unit 4 Ports
1.Power Distribution Unit Specifications
| Customer Name | NO. | Product Specifications Description | ||
| Product Name | Power Distribution Unit | 1 | Socket type and number |
4 -position C 13 (slider anti-drop), 4-position C 19 (hook to prevent slipping) |
| Product specifications and models | 1S 63 XKN4D1-4e4g | 2 | Internal connection line | 10AWG, 14AWG , 16 AWG electronic wire, copper strip |
| Product Code | / | 3 | Power input mode | Open transparent junction box |
| Product quantity | / | 4 | Cable plug type | / |
| RoHS | Yes | 5 | Cable Specifications | Customers connect 3 * 1 6mm² cables by themselves |
| Customer Product Code | / | 6 | Cable installation method | Upper input |
| Customer product specifications and models | / | 7 | Cable fixing | Cable holder |
| 8 | Shell color | Black | ||
| Special product instructions | The product is controlled by two circuit breakers, with corresponding A and B marks on the circuit breakers and the product. | 9 | Dimensions ( L*W*H ) | 1171*52*44.4mm |
| 10 | Center distance of fixing holes | 1151.5mm | ||
| 11 | Aluminum alloy shell length | 1117 mm | ||
| 12 | Product Installation Method | Bracket installation | ||
| 13 | Bracket installation direction | Vertical reverse mounting | ||
| Factory accessories | M6 screws, nuts 4pcs each; C19 metal anti-drop parts 4pcs, C14 plug power cord 1pc | 14 | Control indicator function | 2*1P/ 32A hydraulic circuit breaker |
| 15 | Protection monitoring function | KN- 4 Series | ||
| 16 | Software Version | / | ||
| Product Identification | Product Name | Power Distribution Unit | ||
| Customer Specifications | 1S 63 XKN4D1-4e4g | |||
| Rated voltage and current | 200-240 VAC 63A | |||
| Safety certification mark | / | |||
| Product Logo | neutral | |||
| Manufacturer | neutral | |||

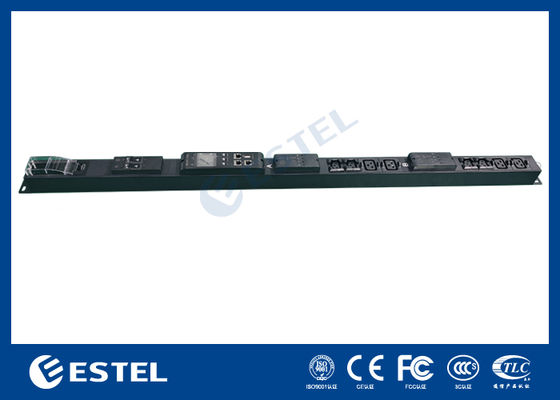

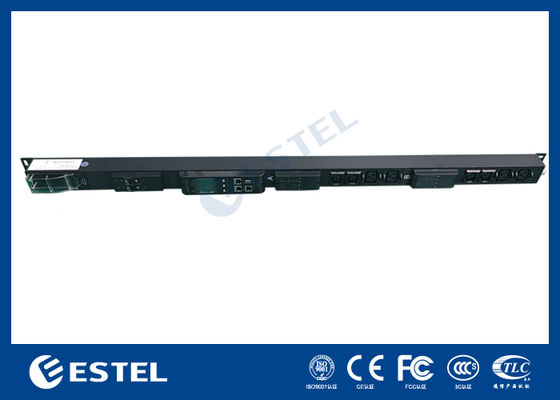

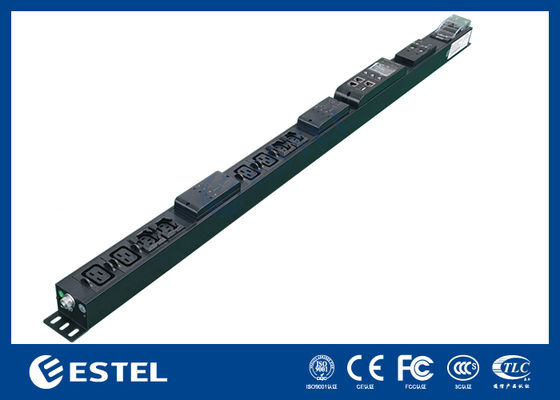

2.Product Renderings
