Outdoor Telecom Power Cabinet With 18kW Rectifier System With Options of Solar Power System

Outdoor Telecom Power Cabinet With 18kW Rectifier System With Options of Solar Power System

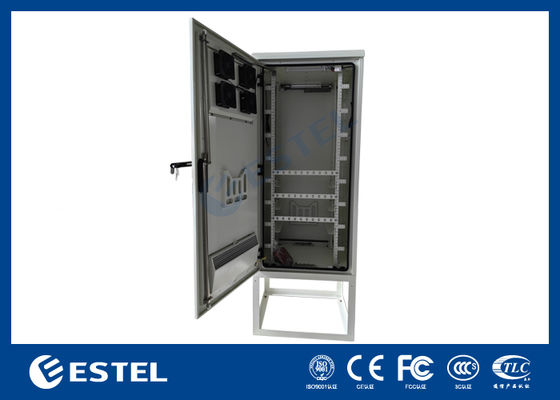

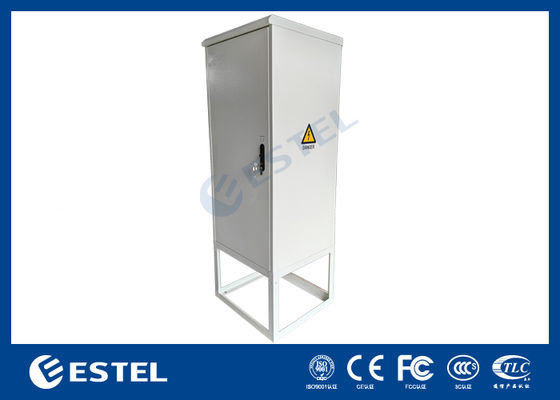

1. Introduction

ET7565205A-32U-18kW is an outdoor cabinet which can protect customer’s equipment from damage and extreme weather conditions, it provides stable and high-quality solar power supply for telecom IT equipment. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipment which need DC power supply.

2. Applications

This outdoor telecom cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.

3. Cabinet Features

• High protection grade: IP55
• Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock
• Cooling system is installed on cabinet door, convenient for maintenance, cleaning and replacement
• Support remote management, improve security and minimize customer’s operation cost
• Highly customizable for: cabinet size, rectifier power system capacity, cooling system configuration, power distribution panel

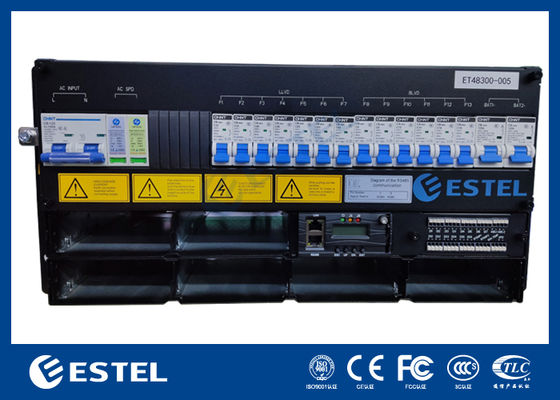

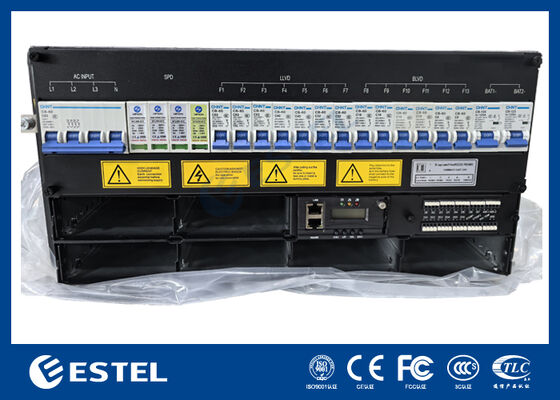

3. Rectifier Power System Features

• Power system capacity: 18kW, 6 rectifier modules + 1 monitoring module;
• Power system height: 5 rack units;
• Rectifier module specification: 3kW
• Monitoring module: support SNMP;
• Power distribution:

              - LLVD: 3x 63A/1P, 2x 40A/1P, 4x 32A/1P;

              - BLVD: 2x16A/1P, 2x 10A/1P, 4x 6A/1P;

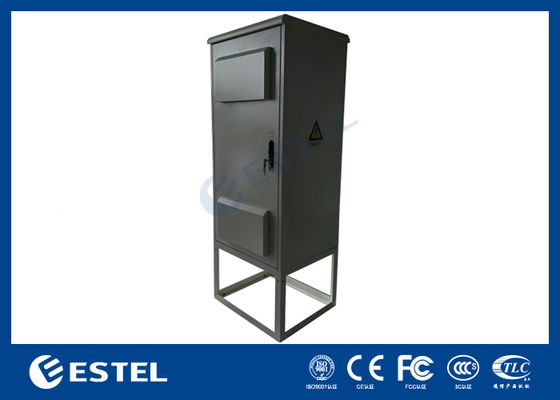

4. Cooling System Features

Door-mounted air conditioner or fans, based on client's equipment heat dissipation power and budget.

5. Technical Parameters
